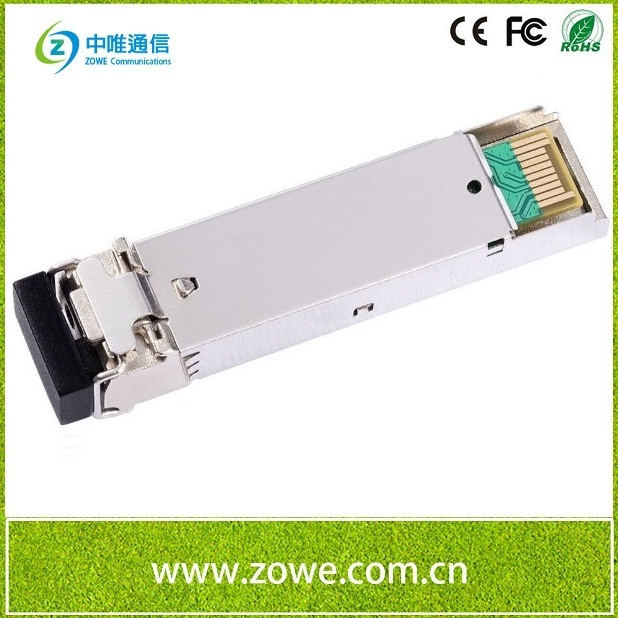

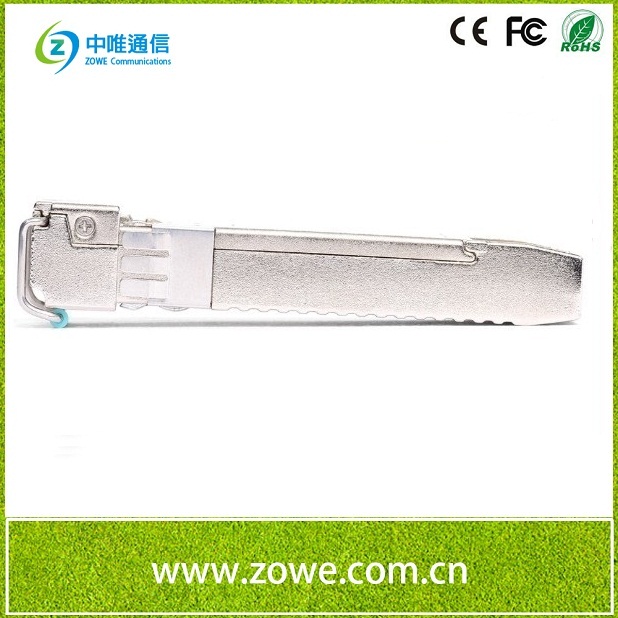

SBP5324-L6xx

1.25G SFP Optical Transceiver,1550/1310nm  60km Reach LC

Features

• Dual data-rate of 1.25G operation

• 1550nm PIN laser and 1310 FP photo-detector for 60km transmission

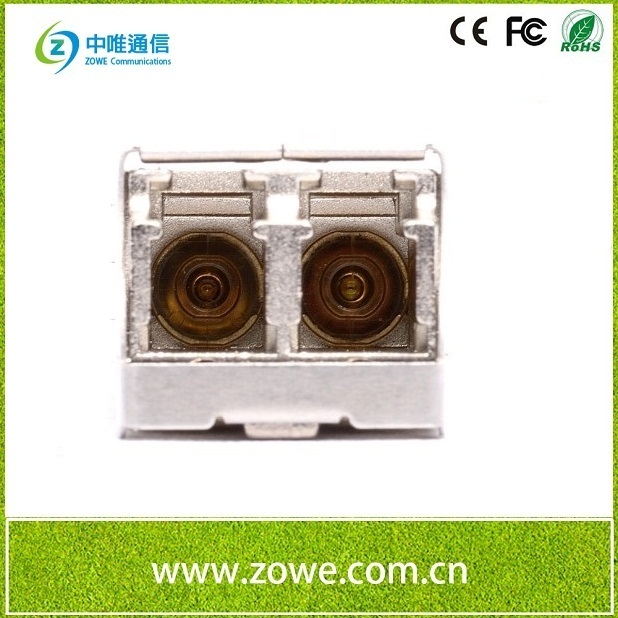

• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
• Digital Diagnostic Monitoring: Internal Calibration or External Calibration
• Compatible with SONET OC-24-LR-1
• Compatible with RoHS
• +3.3V single power supply

Applications

l  SDH STM-1, I-1,S-1.1

l  SONET OC-3 IR-1

l  Router/Server interface

l  Other optical transmission systems

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps and 60km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Ordering information
