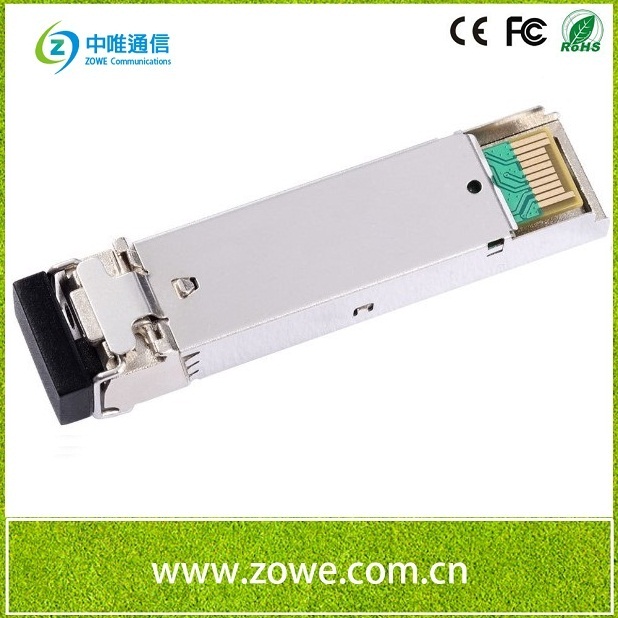

SBP3503-03xx

155Mbps SFP Bi-Directional Transceiver, 3km Reach

1310nm TX / 1550 nm RX

Features

l  Dual data-rate of 155Mbps/125Mbps operation

l  1550nm FP laser and PIN photo-detector for 3km transmission

l  Compliant with SFP MSA and SFF-8472 with single LC receptacle

l  Digital Diagnostic Monitoring:

    Internal Calibration or External Calibration

l  Compatible with RoHS

l  +3.3V single power supply

l  Operating case temperature:

Standard :  0 to +70°C

Applications

l  SDH STM-1, I-1,S-1.1

l  SONET OC-3 IR-1

l  Router/Server interface

l  Other optical transmission systems

Description

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 125Mbps/155Mbps and 3km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
